JUN-AIR Quiet and Clean Air,

Rocking Piston Compressed Air System


Sophisticated use of clean and dry compressed air in laboratories, within the dental and medical industry results in an increasing demand for high quality oil-less air compressors. JUN-AIR's extensive range complies with the company's traditional values - low noise level, reliability and long lifetime. Easy maintenance, a unique cooling system and wear-resisting piston rings ensure, even under extreme conditions, 100% continuous operation and a minimum lifetime of 8,000 hours.


Flexibility is one of the key features of the oil-less series. The ranges are available as separate compressor units or as complete solutions. The compact OF300 motor may be placed in any plane and the adjustable footprints allow retrofitting of existing installations. Adjustable feet, multiple outlet ports and mounting positions, make the OF series the perfect choice for integrated, customized solutions.


All receivers for oil-less compressors are internally powder-coated in order to avoid corrosion, ensuring high air quality throughout the lifetime of thereceiver. Having the lowest noise and vibration level in the market, JUN-AIR compressors are suitable for installation directly at or near the place of use. The optimum solution is the M series where a metal cabinet reduces the noise level by approx. 75% .





Model

System Type

Displacement (50 Hz)

Displacement  (60 Hz)

Max. Pressure

Tank Size

OF301 motor

Motor

1.91 cfm

2.40 cfm

120 psig


OF311 motor

Motor

2.37 cfm

2.97 cfm

90 psig


OF301-4B

Basic Unit

1.91 cfm

2.40 cfm

120 psig

1.1 gal

OF301-4M

Cabinet Unit

1.91 cfm

2.40 cfm

120 psig

1.1 gal

OF301-4MD2

Cabinet Unit

1.91 cfm

2.40 cfm

120 psig

1.1 gal

OF302 motor

Motor

3.81 cfm

4.87 cfm

120 psig


OF312 motor

Motor

4.73 cfm

5.93 cfm

90 psig


OF322 motor

Motor

2.37 cfm

2.97 cfm

175 psig


OF302-4B

Basic Unit

3.81 cfm

4.87 cfm

120 psig

1.1 gal

OF302-4M

Cabinet Unit

3.81 cfm

4.87 cfm

120 psig

1.1 gal

OF302-4MD2

Cabinet Unit

3.81 cfm

4.87 cfm

120 psig

1.1 gal

OF302-4S

Cabinet Unit

3.81 cfm

4.87 cfm

120 psig

1.1 gal

OF302-15B

Basic Unit

3.81 cfm

4.87 cfm

120 psig

4 gal

OF302-25B

Basic Unit

3.81 cfm

4.87 cfm

120 psig

6.6 gal

OF302-25BD2

Basic Unit

3.81 cfm

4.87 cfm

120 psig

6.6 gal

OF302-25M

Cabinet Unit

3.81 cfm

4.87 cfm

120 psig

6.6 gal

OF302-25MQ2

Cabinet Unit

3.81 cfm

4.87 cfm

120 psig

6.6 gal

2xOF302-40B

Basic Unit

7.63 cfm

9.75 cfm

120 psig

10.6 gal

2xOF302-40BD2

Basic Unit

7.63 cfm

9.75 cfm

120 psig

10.6 gal

2xOF302-40M

Cabinet Unit

7.63 cfm

9.75 cfm

120 psig

10.6 gal

2xOF302-40MQ2

Cabinet Unit

7.63 cfm

9.75 cfm

120 psig

10.6 gal

OF1201 motor

Motor

5.16 cfm

6.00 cfm

120 psig


OF1201-25HB

Basic Unit

5.16 cfm

6.00 cfm

120 psig

6.6 gal

OF1201-25HBD2

Basic Unit

5.16 cfm

6.00 cfm

120 psig

6.6 gal

OF1201-25M

Cabinet Unit

5.16 cfm

6.00 cfm

120 psig

6.6 gal

OF1201-25MD2

Cabinet Unit

5.16 cfm

6.00 cfm

120 psig

6.6 gal

OF1201-40B

Basic Unit

5.16 cfm

6.00 cfm

120 psig

10.6 gal

OF1201-40BD2

Basic Unit

5.16 cfm

6.00 cfm

120 psig

10.6 gal

OF1202 motor

Motor

10.24 cfm

11.58 cfm

120 psig


OF1202-40B

Basic Unit

10.24 cfm

11.58 cfm

120 psig

10.6 gal

OF1202-40BD3

Basic Unit

10.24 cfm

11.58 cfm

120 psig

10.6 gal

OF1202-40M

Cabinet Unit

10.24 cfm

11.58 cfm

120 psig

10.6 gal

OF1202-40MQ3

Cabinet Unit

10.24 cfm

11.58 cfm

120 psig

10.6 gal

2xOF1202-90B

Basic Unit

20.48 cfm

23.17 cfm

120 psig

23.7 gal

2xOF1202-90BD6

Basic Unit

20.48 cfm

23.17 cfm

120 psig

23.7 gal

2xOF1202-150B

Basic Unit

20.48 cfm

23.17 cfm

120 psig

39.6 gal

2xOF1202-150BD6

Basic Unit

20.48 cfm

23.17 cfm

120 psig

39.6 gal

2xOF1202-40M

Cabinet Unit

20.48 cfm

23.24 cfm

120 psig

10.6 gal

2xOF1202-40MQ6

Cabinet Unit

20.48 cfm

23.24 cfm

120 psig

10.6 gal

i40-4B

Basic Unit

3.17 cfm


100 psig

1.1 gal

i40-25B

Basic Unit

3.17 cfm


100 psig

6.6 gal

i80-25B

Basic Unit

6.35 cfm


100 psig

6.6 gal

OF301V motor

Motor

1.91 cfm

2.40 cfm



OF302V motor

Motor

3.81 cfm

4.87 cfm



OF302V-4M

Cabinet Unit

3.81 cfm

4.87 cfm


1.1 gal

OF302V-4B

Basic Unit

3.81 cfm

4.87 cfm


1.1 gal

87R-4P

Cabinet Unit

2.75 cfm

2.5 cfm

120 psi

1.1 gal

86R-4B

Basic Unit

1.2 cfm

1.41 cfm

120 psi

1.1 gal

87R-4B

Basic Unit

2.9 cfm

3.2 cfm

120 psi

1.1 gal

87R-15B

Basic Unit

2.9 cfm

3.2 cfm

120 psi

4 gal

87R-25B

Basic Unit

2.9 cfm

3.2 cfm

120 psi

6.6 gal

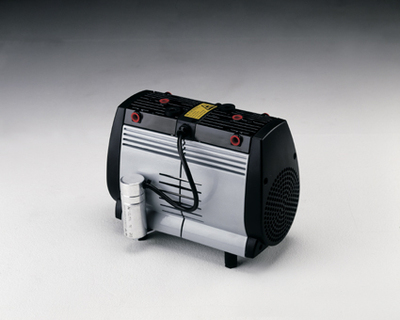

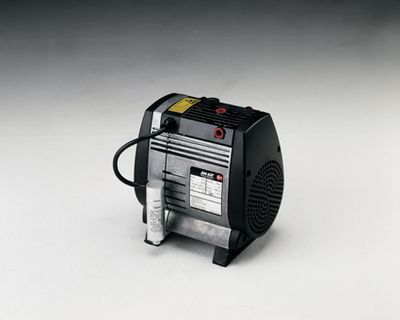

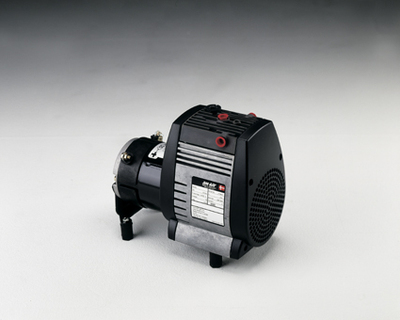

JUN-AIR Oil-less Piston Pump

02_02_044_B_-_OF301_motor_DC_screen.jpg  02_02_045_B_-_OF301_motor_screen.jpg  02_02_047_B_-_OF302_motor_painted_screen.jpg

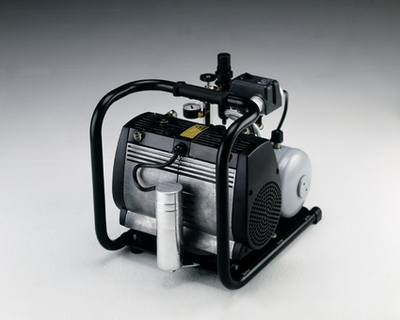

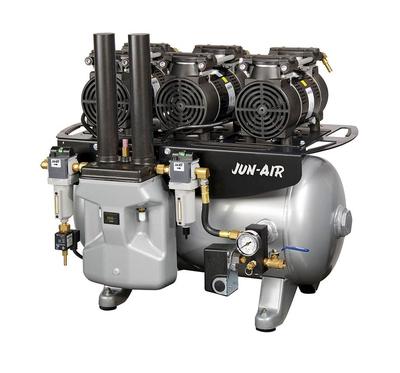

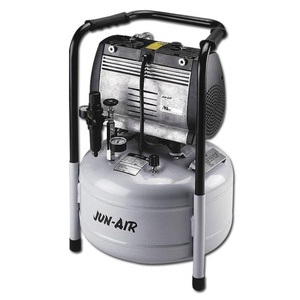

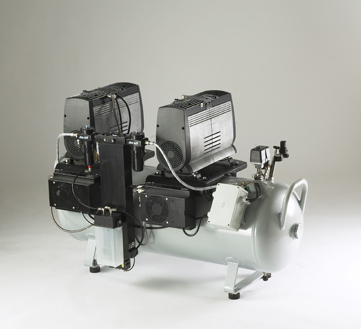

JUN-AIR Oil-less Rocking Piston System – Basic Unit

02_02_020_B_-_OF302-25BD2_screen.jpg  02_02_049_B_-_OF302-4B_screen.jpg  B_2xOF1202-150BD6_screen.jpg

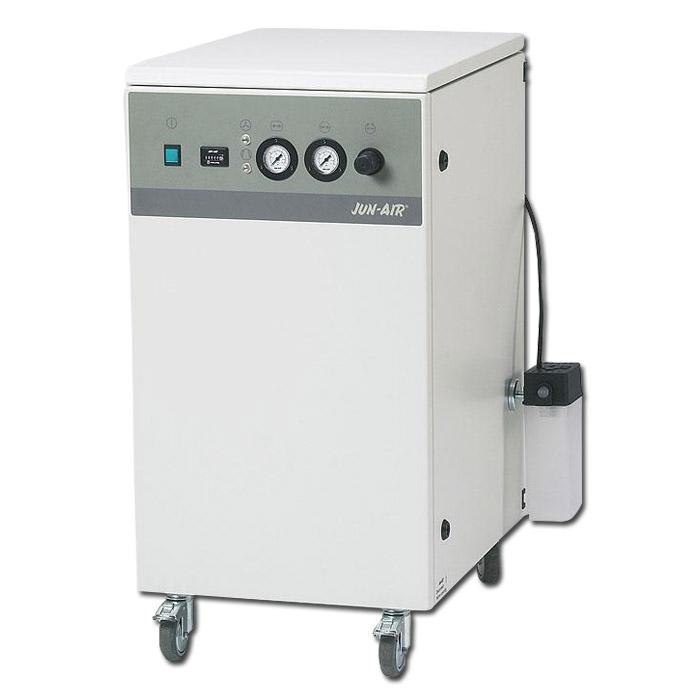

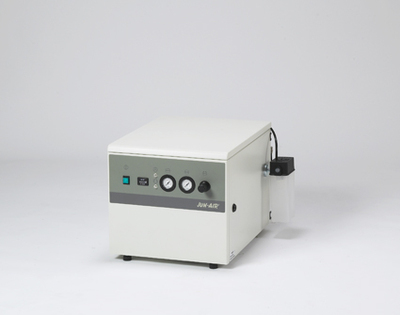

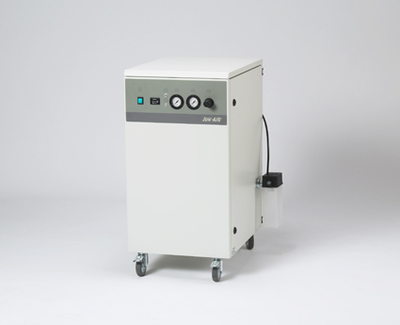

JUN-AIR Oil-less Rocking Piston System – Cabinet Unit

B_4000-40M-new2004_screen.jpgB_OF302-5M-new2004_screen.jpgB_2000-25M-new2004_screen.jpgJun-Air_OF302-25M.jpg
