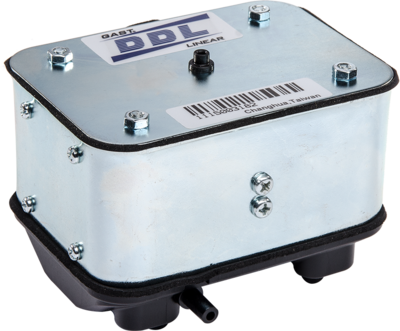

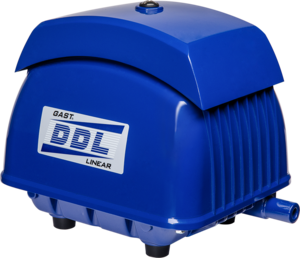

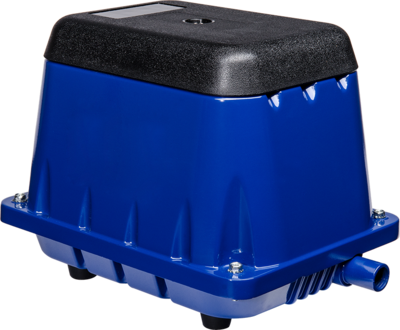

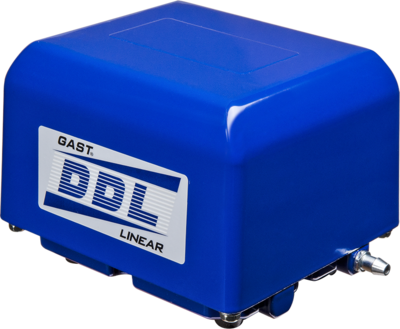

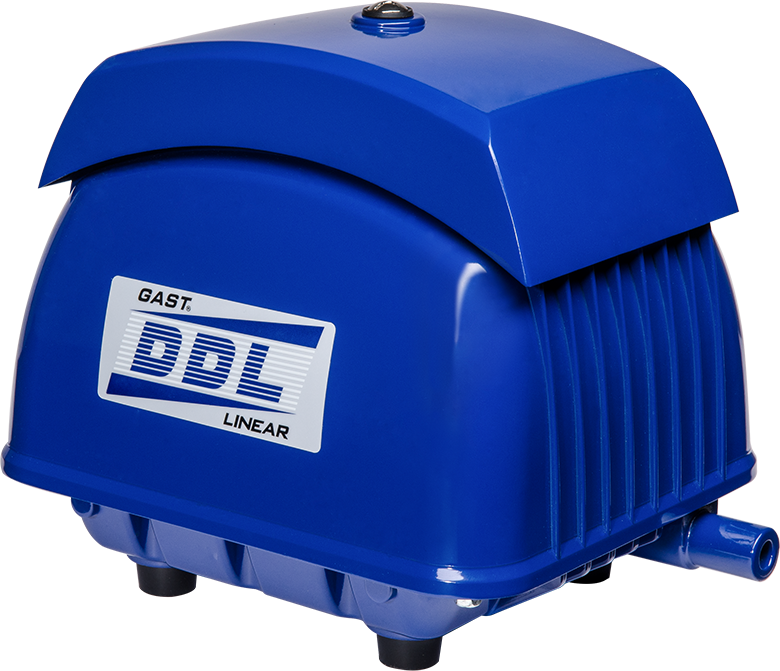

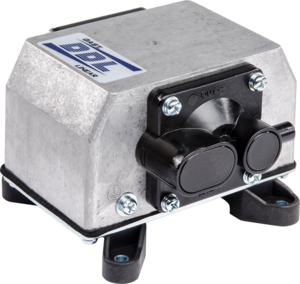

GAST Linear Pump

Electromagnetic oscillation of the rod/diaphragm assembly changes the volume of space enclosed between the casing and the diaphragm, creating pressure or vacuum.

FEATURES:

• Oilless

• Long life

• Low noise level

• High efficiency

• Compact and powerful

• No lubrication necessary

• Smooth airflow

APPLICATIONS:

• Blood cuff monitors

• Waste water treatment

• Environmental monitoring and air sampling

• Oxygen supply for medical instruments

• Liquid agitation and mixing

• Hospital air mattresses

• Medical nebulizers

• Air supply for leak test equipment

• Solder removal

• Automotive emission test equipment

• Leak test equipment

• Scientific and medical analysis equipment

Model	Free Air Flow （lpm）	Max. Pressure （psi）	Max. Vacuum	Motor Spec.
Model	Free Air Flow （lpm）	Max. Pressure （psi）	Mbar (abs)	Power (W)	Volt.&Freq. （V-Hz）
DDL5	13	3	-	9.5	AC: 120//230V
DDL5BS	11	3	825	10	AC: 120//230V
DDL5ES	11	3	825	10	AC: 120V-60Hz
DDL8	23	3	-	12	AC: 120//230V
DDL8B	23	3	-	13	AC: 120//230V
DDL8BS	23	3	760	12	AC: 120V-60Hz
DDL15	28	5	-	20	AC: 120//230V
DDL15B	32	5	-	22	AC: 120//230V
DBM20	26	6	-	15	AC: 120//230V
DBM30B	63	5	-	34	AC: 120//230V DC: 12VDC
DDL30	65	5	-	46	AC: 120V-60Hz
DDL30B	65	5	-	46	AC: 120//230V
DDL30BS	65	6	600	46	AC: 120//230V
DBM40	74	6	-	46	AC: 120//230V
DDL40	76	6	-	46	AC: 120//230V
DDL40B	76	6	-	51	AC: 120//230V
DDL40BS	105	6	610	51	AC: 120V-50/60Hz
DBM60	96	6	-	71	AC: 120//230V
DDL60	102	6	-	70	AC: 120V-60Hz
DDL80	120	7	-	95	AC: 120//230V
DBM80	118	7	-	92	AC: 120//230V
