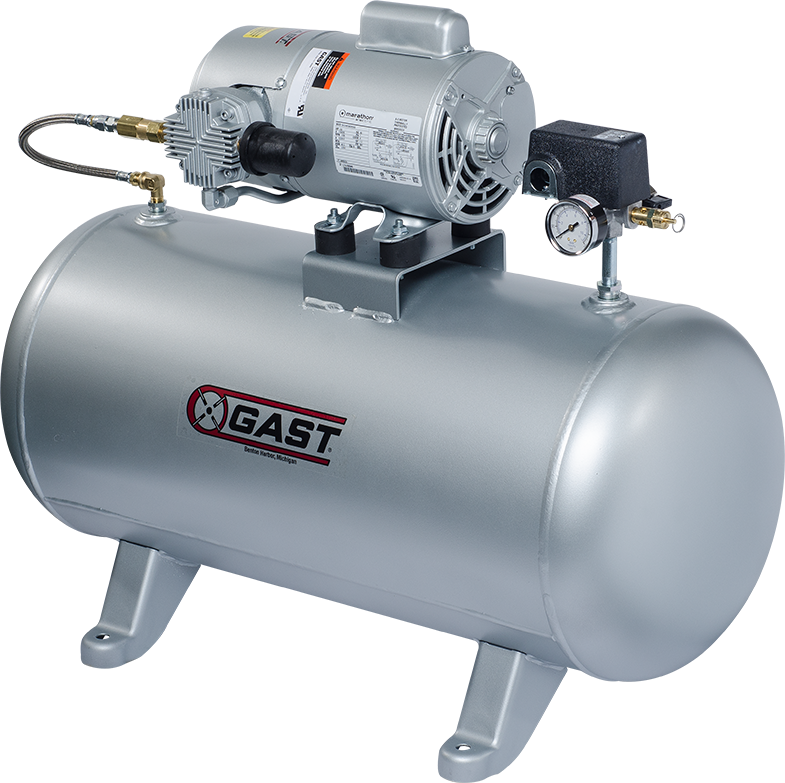

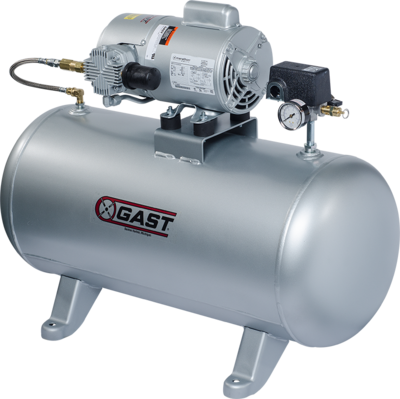

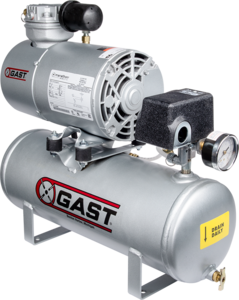

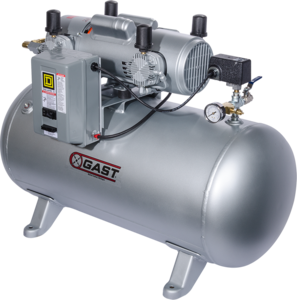

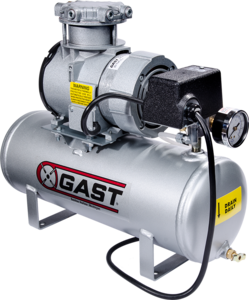

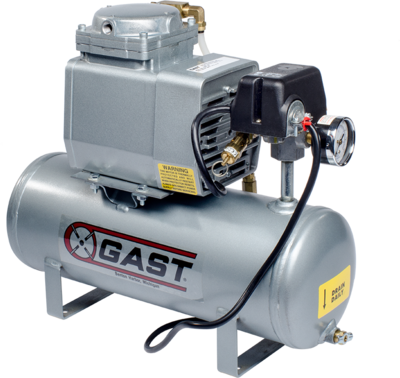

GAST Compressed Air and Vacuum System

Tanks systems that can be designed to make small pumps do big jobs are a natural ex-tension of the Gast line. That's why Gast, the original equipment manufacturer's manufacturer is extending its expertise into tank systems for hospitals, medical clinics, pneumatic temperature control, dry sprinkler systems, automatic doors, beverage dispensers, dental equipment, and vacuum forming, to mention just a few applications. If you're considering a tank system for an application that requires oil-free air, long life, minimum service, and maximum dependability, Gast has one for you.

FEATURES:

• High Volumes

• Longer Pump Life

• Cost Savings

• Quiet Operation

• Pulse Free

• Central System

APPLICATIONS:

• Beverage dispensing

• Cylinder actuation

• Pneumatic temperature control

• Spray painting

• Pneumatic logic

• Hospitals, Medical/dental clinics

• Clean room environment

• Vacuum thermo-forming

• Food processing

• Impregnation and degassing

• Avionics

• Tansfer/handling equipment

Model Number	Tank Size (Gal)	CFM @ PSIG						ON /OFF psig	0 to 100 Setting	Recovery of Standard Setting	Motor Voltage	HP	Shipping Weight lbs.
Model Number	Tank Size (Gal)	0	10	30	50	70	100	ON /OFF psig	0 to 100 Setting	Recovery of Standard Setting	Motor Voltage	HP	Shipping Weight lbs.
ROA-P206T-AA	Contact Factory for specific details
DOA-P706T-AA	2	1.00	.85	.50	.20	-	-	30/50	1:30	0:55	115-30-1	1/8	39
1HAB-11T-M100X	2	1.25	1.10	.85	.65	.4	.35	70/100	2:55	0:55	115-60-1	1/6	49
IHAE-11T-M104X	2	1.25	1.10	.85	.65	.4	.35	70/100	2:55	0:55	220-50-1	1/6	49
1LAA-11T-M100X	2	1.5	1.35	1.1	.90	-	-	30/50	0:50	0:20	115-60-1	1/6	49
2HAH-11T-M200X	2	1.65	1.55	1.30	1.15	.90	.85	70/100	1:45	0:30	115-60-1	1/4	56
71R142-P075T-D300X	2	2.00	1.80	1.50	1.20	1.10	.90	70/100	1:30	0:25	115-50/ 60-1	1/3	42

Model Number	Tank Size (Gal)	CFM @ PSIG						ON/ OFF psig	0 to 100 Setting	Recovery of Standard Setting	Motor Voltage	HP	Shipping Weight (lbs.)
Model Number	Tank Size (Gal)	0	10	30	50	70	100	ON/ OFF psig	0 to 100 Setting	Recovery of Standard Setting	Motor Voltage	HP	Shipping Weight (lbs.)
2LAF-11T-M200X	12	2.10	1.80	1.70	1.50	-	-	30/50	2:15	0:55	115-60-1	1/4	55
3HEB-11T-M345X	12	2.40	2.20	1.85	1.50	1.30	1.15	80/100	5:45	1:55	115-60-1	1/3	93
3HBE-11TF-M303X	12	2.40	2.20	1.85	1.50	1.30	1.15	80/100	5:45	1:55	220-50-1	1/3	93
3LEM-11T-M345X	12	2.9	2.70	2.20	2.00	-	-	30/50	1:45	0:45	115-60-1	1/3	93
3LBA-11T-M300X	12	3.1	2.70	2.20	1.80	-	-	30/50	2:45	0:45	115-60-1	1/3	93
*71R640-P64T-D500	12	3.50	3.15	2.65	2.20	1.85	1.45	90/110	5:63	1:13	115-60-1	3/4	105
*71R640-P67T-D500X	12	3.50	3.15	2.65	2.20	1.85	1.46	90/110	5:43	1:13	115-60-1	3/4	105
*71R640-P65DT-D500X	12	7.00	6.30	5.30	4.40	3.70	2.92	90/110	3:13	0:45	115-60-1	3/4	115
4HCC-11T-M450X	20	3.50	3.30	2.80	2.40	2.10	1.70	80/100	7:00	2:50	115-60-1	1/2	118
4LCB-11T-M450X	20	4.5	4.00	3.20	3.00	-	-	30/50	2:25	1:00	115-60-1	1/2	118
5HCD-11T-M550NGX	20	4.70	4.40	3.9	3.40	2.90	2.40	80/100	5:00	1:55	115-60-1	3/4	121
5HCD-11TA-M550X	20	4.70	4.40	3.90	3.40	2.90	2.40	80/100	5:00	1:55	230-60-1	3/4	121
6HCA-11T-M616X	30	5.40	5.20	4.70	4.30	3.90	3.20	80/100	5:50	2:25	115-60-1	1	124
6HCA-11TD-M617	30	5.40	5.20	4.70	4.30	3.90	3.20	80/100	5:50	2:25	460-60-3	1	123
6LCF-11T-M616X	30	6.30	6.00	5.50	5.00	-	-	30/50	2:00	0:50	155/230-60-1	1	125
7HDD-11T-M750X	30	9.00	8.40	7.25	6.50	5.75	5.00	80/100	4:15	1:35	115-60-1	1-1/2	155
7HDD-11TA-M750X	30	9.00	8.40	7.25	6.50	5.75	5.00	80/10	4:15	1:35	230-60-1	1-1/2	155
7HDD-11TC-M853	30	9.00	8.40	7.25	.5	5.75	5.00	80/100	4:15	1:35	230-60-3	2	155
7HDD-11TD-M853	30	9.00	8.40	7.25	6.50	5.75	5.00	80/100	4:15	1:35	460-60-3	2	155
8HDM-11TC-M853	30	11.00	10.25	9.25	8.50	7.50	7.00	80/100	3:30	1:10	230-60-3	2	160
8HDM-11TD-M853	30	11.00	10.25	9.25	8.5	7.50	7.00	80/100	3:30	1:10	460-60-3	2	160
8LDF-11TA-M850X	30	12.50	12.00	10.60	9.3	-	-	30/50	0:45	0:20	230-60/50-1	2	160
